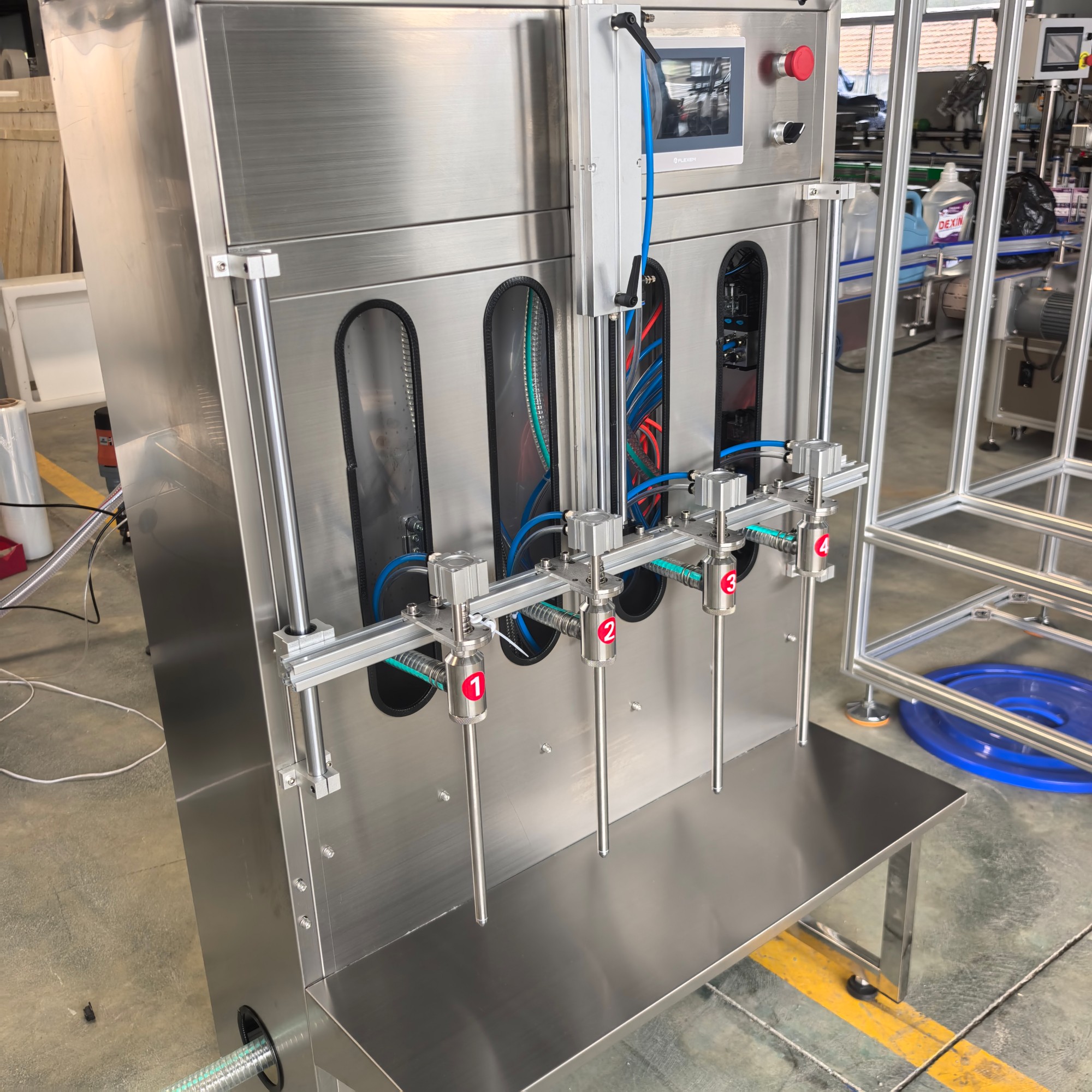

PLC Control Gravity Flow Filling Machine 5 Inch Touch Screen for Parameter Setting

Product Categories

Filling Machine [59]
Liquid Filling Production Line [18]
Bottle Washing Machine [6]
Capping Sealing Machine [13]
Water Treatment System [2]
Other Packaging Auxiliary Equipment [3]
JIUTAI TOP [14]
Anti-corrosion Filling Machine [38]
Liquor/Wine/Vodka Filling Machine [23]
Paste/Thick Liquid Filling Machine [153]
Beverage/Juice Filling Machines [13]
Weighing Filling Machine [15]
Automatic Gear Pump Tracking Filling Machine [30]
Semi-Automatic Piston Filling Machine [3]
Gravity Flow Linear Filling Machine [31]
Barreled Water Packaging Machine [9]
Bottled Water Filling Machine [8]
Liquid Filling Machine [28]
T-Stopper Capping Machine [1]
Automatic ROPP Capping Machine [15]
Daily Chemical Filling Machine [32]
Oil Filling Machine [38]
Semi-automatic Capping Machine [2]

Qingzhou Jiutai Packaging Machinery Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PLC Control Gravity Flow Filling Machine 5 Inch Touch Screen for Parameter Setting

Weight (kg) : 150

Material Contact Parts : 316L Stainless Steel

Power supply : AC 220V/50Hz (Single-phase) or 380V/50Hz (Three-phase)

Place of Origin : Shandong, China

Filling Principle : Gravity Flow

Production Efficiency : 300-800 bottles/hour

dimension(l*w*h) : 1800*1200*1500

core components : Motor, PLC, Pump, Bearing

Filling Accuracy : ≤+0.5%

Brand Name : JIUTAI

MOQ : 1 set

Price : $980-2,000 / set

warranty : 1 Year

key selling points : Easy To Operate, Competitive Price, Digital

Frame Material : Q235 Carbon Steel (Electrostatic Spraying)

packaging material : Plastic, Wood

automatic grade : Semi-Automatic

driven type : Electric

filling material : Water, Alcohol, Liquor, Oil, Gel

Filling Volume : 50ml-20L

Total Power : s 1.5kW

machinery test report : Provided

Operation Mode : Semi-automatic

After-sales Service Provided : Video Technical Support

Voltage : 220 V, 110 V, 415V, 380 V

filling accuracy : 99%

packaging type : Bottles, Cans

video outgoing-inspection : Provided

Filling heads : 2,4,6

Applicable Materials : Low-to-medium viscosity liquids (viscosity ≤ 500 mPa-s)

Contact Now

Product descriptions from the supplier

DURABLE & EASY MAINTENANCE: Electrostatic-sprayed Q235 frame, compact corrosion-resistant. Quick-release contact parts, standardized components. IP54 electrical box + multiple protections for harsh environments.

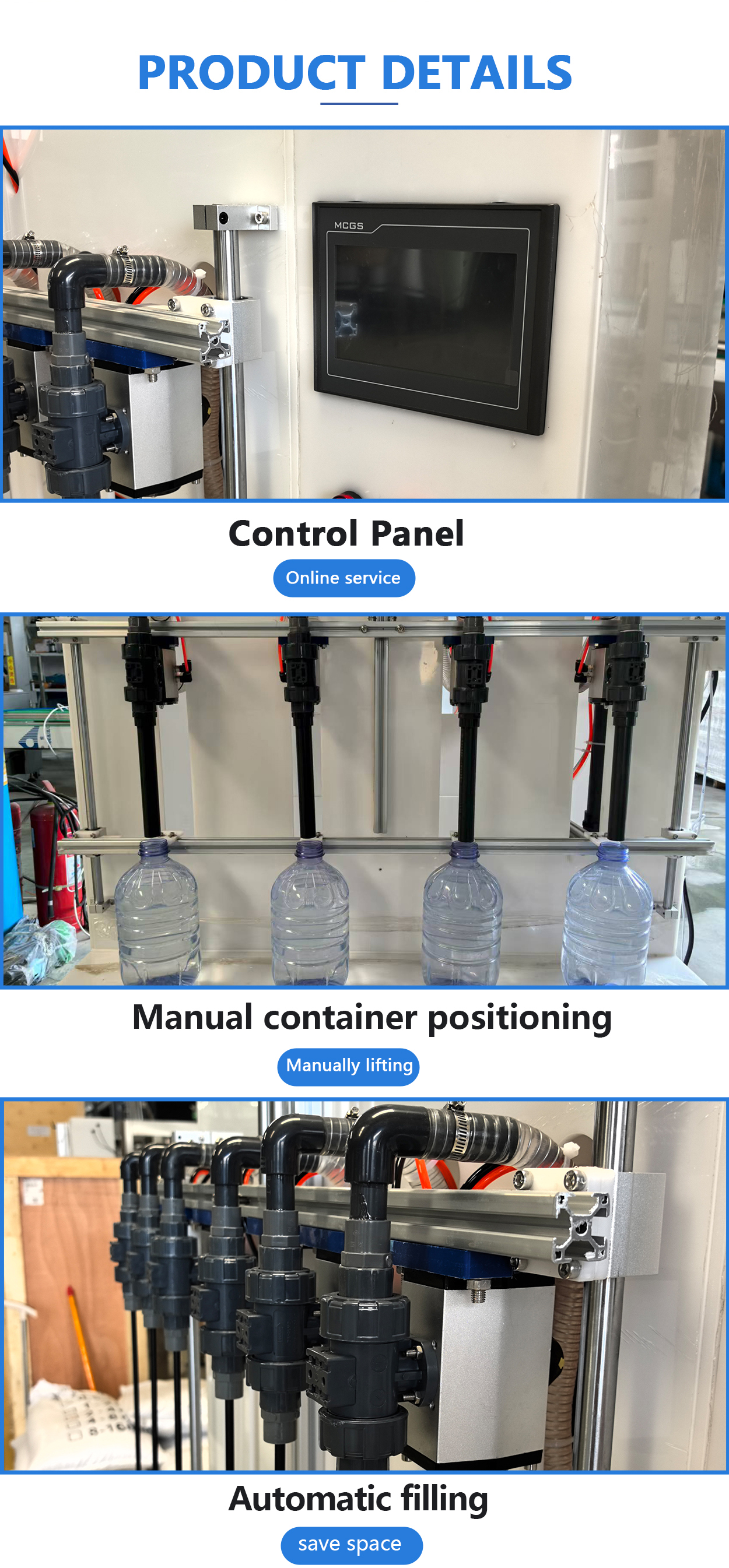

USER-FRIENDLY OPERATION: 5-inch touch screen + Delta PLC, intuitive setting. Manual positioning + automatic filling (button/foot pedal), 300-800 bottles/hour (500ml), balancing efficiency and cost.

MULTI-CONTAINER COMPATIBILITY: Adjustable platform (500-800mm) and baffle, fits 30-150mm diameter, 80-300mm height containers, 50-2000ml filling volume. Stores 10+ specs for quick switching.

HIGH ACCURACY & HYGIENE: Precision stainless steel needle valve with two-stage filling, ±0.5% accuracy. Food-grade 316L stainless steel contact parts, compliant with GB 4806.1-2016 and FDA standards.

GRAVITY FLOW FILLING: Uses atmospheric pressure gravity filling, no high-pressure pumping. Suitable for low-to-medium viscosity/heat-sensitive/foam-prone liquids.

PLC Control Gravity Flow Filling Machine 5 Inch Touch Screen for Parameter Setting

About this supplier

Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.
