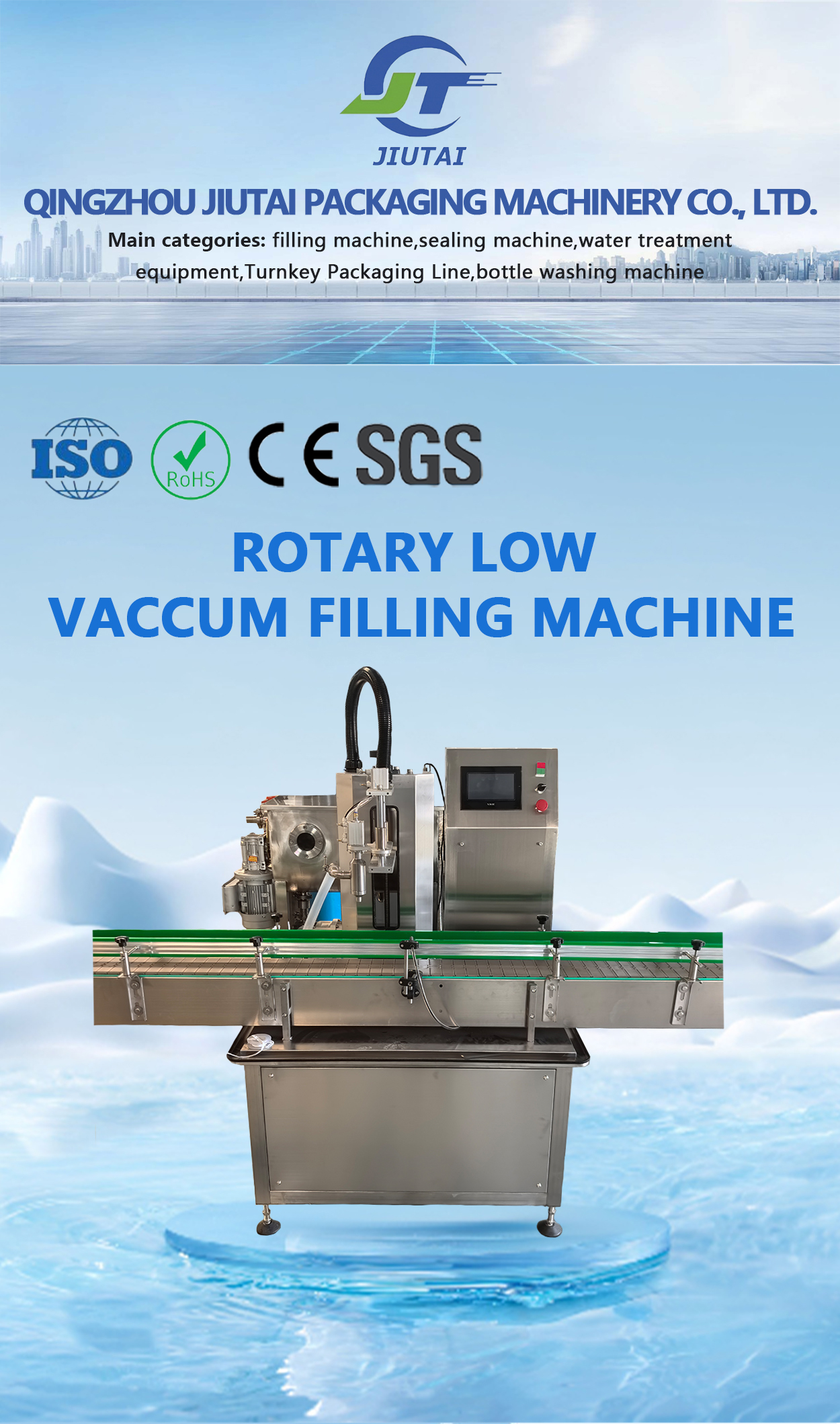

Fully Automatic Customizable Heads Servo Motor Rotor Pump High Viscosity Liquid Honey Filling Machine for Sauce Jam

Product Categories

Filling Machine [61]
Liquid Filling Production Line [18]
Bottle Washing Machine [6]
Capping Sealing Machine [22]
Labeling Machine / Shrink Sleeve Labeling Machine [2]
Water Treatment System [2]
Other Packaging Auxiliary Equipment [4]
JIUTAI TOP [15]
Anti-corrosion Filling Machine [44]
Liquor/Wine/Vodka Filling Machine [24]
Paste/Thick Liquid Filling Machine [153]
Beverage/Juice Filling Machines [13]
Weighing Filling Machine [15]
Automatic Gear Pump Tracking Filling Machine [30]
Semi-Automatic Piston Filling Machine [3]
Gravity Flow Linear Filling Machine [31]
Barreled Water Packaging Machine [9]
Bottled Water Filling Machine [9]
Liquid Filling Machine [28]
T-Stopper Capping Machine [1]
Automatic ROPP Capping Machine [15]
Daily Chemical Filling Machine [32]
Oil Filling Machine [38]
Semi-automatic Capping Machine [2]

Qingzhou Jiutai Packaging Machinery Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Fully Automatic Customizable Heads Servo Motor Rotor Pump High Viscosity Liquid Honey Filling Machine for Sauce Jam

Price : $4,770-4,950 / set

dimension(l*w*h) : 890*870*805

machinery test report : Provided

filling nozzle : 2, 1, 4, 6, 8

MOQ : 1 set

application : Water, Chemical, Other

Filling Volume : 10ml-10000ml, 10ml-10000ml

packaging type : Bottles, Cans, Barrel, Pouch

Weight (kg) : 500

After Warranty Service : Online Suppot

driven type : Electric

key selling points : Easy To Operate, Competitive Price, Digital

After-sales Service Provided : Video Technical Support

Servo motor power : 0.75kw-3kw/head

filling material : Oil, Liquid Soap, Viscous Liquid, Honey, Peanut Butter, Shampoo, Glue

Place of Origin : Shandong, China

core components : Motor, PLC, Pump

Material contact material : 316L stainless steel, polytetrafluoroethylene, food grade silicone

automatic grade : Automatic

Bottle type : Circular, square, and irregular shaped bottles

Voltage : AC 220V/380V/50Hz, AC 220V/50Hz

video outgoing-inspection : Provided

Filling head : 1,2,4,6,8Heads(Customizable)

warranty : 1 Year

filling accuracy : ±3%

Product name : Automatic Liquid Filling Machine

packaging material : Plastic, Metal, Wood

air supply pressure : 0.4-0.8MPa

Control : PLC control system+7-inch touch screen

Suitable for : viscous liquid(Edible oil, engine oil, washing products, etc.)

Contact Now

Fully Automatic Customizable Heads Servo Motor Rotor Pump High Viscosity Liquid Honey Filling Machine for Sauce Jam

Product Paramenters

Parameter Name	Specification Model (Customizable)	Description
Number of Filling Heads	1-head, 2-head, 4-head, 6-head, 8-head	Customizable according to production capacity requirements; the more heads, the higher the production capacity.
Filling Capacity Range	10ml - 10000ml	Supports stepless adjustment; specifications can be quickly switched via the touch screen.
Production Efficiency	1000 - 12000 bottles/hour	Calculated based on 500ml specification; different numbers of heads correspond to different production capacities.
Measurement Accuracy	≤ ±0.2% (for conventional materials); ≤ ±0.1% (forgrade materials)	Achieved by closed-loop control of the servo motor, with little influence from material viscosity.
Servo Motor Power	0.75kw - 3kw per head	Matched according to filling capacity and material viscosity.
Power Supply Specification	AC 220V/380V/50Hz (three-phase four-wire); AC 220V/50Hz (for small-sized equipment)	Customizable according to regional voltage.
Air Supply Pressure	0.4 - 0.8MPa	Used for pneumatic components such as cylinder drive.
Material Contact Material	316L stainless steel, polytetrafluoroethylene (PTFE), food-grade silica gel	Meets food-grade and grade hygiene requirements, and has corrosion resistance.
Control Method	PLC control system + 7-inch touch screen	Supports functions such as parameter storage, fault alarm, and production counting.
Applicable Bottle Types	Round, square, and special-shaped bottles (diameter: 30 - 150mm, height: 50 - 300mm)	The height of the filling heads can be adjusted for adaptation.

Details Images

Note: We can customize the machine according to your actual output requirements and plan the layout of the production line based on your site, so that you can achieve the most efficient use of the site.

Company Profile

Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.

Product packaging

FAQ

1. What main products does Qingzhou Jiutai specialize in?

We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?

Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?

Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?

Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?

Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
