Automatic with Conveyor Fully Automatic Quantitative Honey Oil Viscous Liquid Filling Machine for Packing

filling material : Oil, Liquid Soap, Viscous Liquid, Honey, Peanut Butter, Shampoo, Glue

Place of Origin : Shandong, China

Weight (kg) : 500

Bottle type : PET Plastic Bottle Glass Bottle

After Warranty Service : Online Suppot

automatic grade : Automatic

Product name : Semi Automatic Liquid Filling Machine

application : Chemical, Water, Other

Material : SUS304 / 316

driven type : Electric

warranty : 1 Year

filling accuracy : ±3%

Filling Volume : 50ml-20L, 50ml-5000ml

packaging type : Bottles, Cans, Barrel, Pouch

Voltage : 220 V, 110 V, 415V, 380 V

dimension(l*w*h) : 1500*1200*2200

Suitable for : Fluid Material (alll Liquid Products)

Keywords : Fillng Machine

core components : Motor, PLC, Pump

filling nozzle : 4, 6, 10, 8

MOQ : 1 set

Filling head : 4-12 Heads(Customizable)

packaging material : Plastic, Metal, Wood

Control : PLC+ Touch Screen

video outgoing-inspection : Provided

Filling speed : 1200-2400BPH

Price : $7,600-7,800 / set

key selling points : Easy To Operate, Competitive Price, Digital

machinery test report : Provided

After-sales Service Provided : Video Technical Support

Contact Now

Automatic with Conveyor Fully Automatic Quantitative Honey Oil Viscous Liquid Filling Machine for Packing

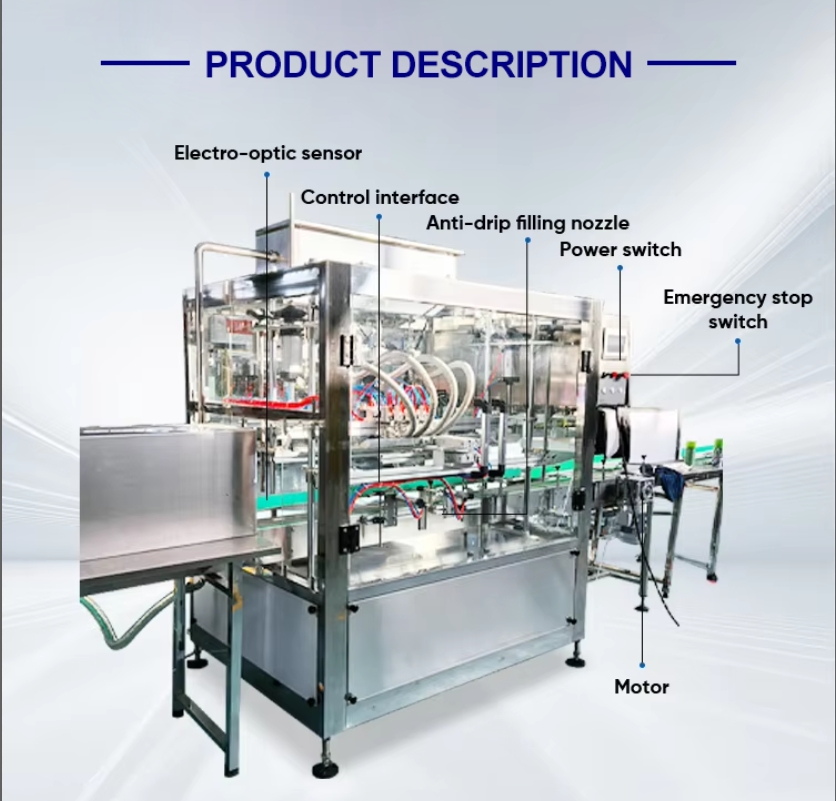

Products Description

This high-efficiency filling machine features 6 synchronized piston heads, ideal for precise dosing of liquids, pastes, and semi-viscous products (e.g., sauces, oil,honey, chemicals). Equipped with PLC control and touchscreen operation, it enables easy adjustment of filling volumes (5-500ml) and speeds (up to 1500 bottles/min).

The stainless steel construction ensures durability and compliance with food/pharma standards. With automatic bottle positioning and no-bottle no-fill function, it minimizes waste. Suitable for glass/plastic bottles, jars, enhancing production line automation.

Details Images

The cylinder is custom-made from 304 stainless steel, meeting food-grade standards for safe contact with edible products.

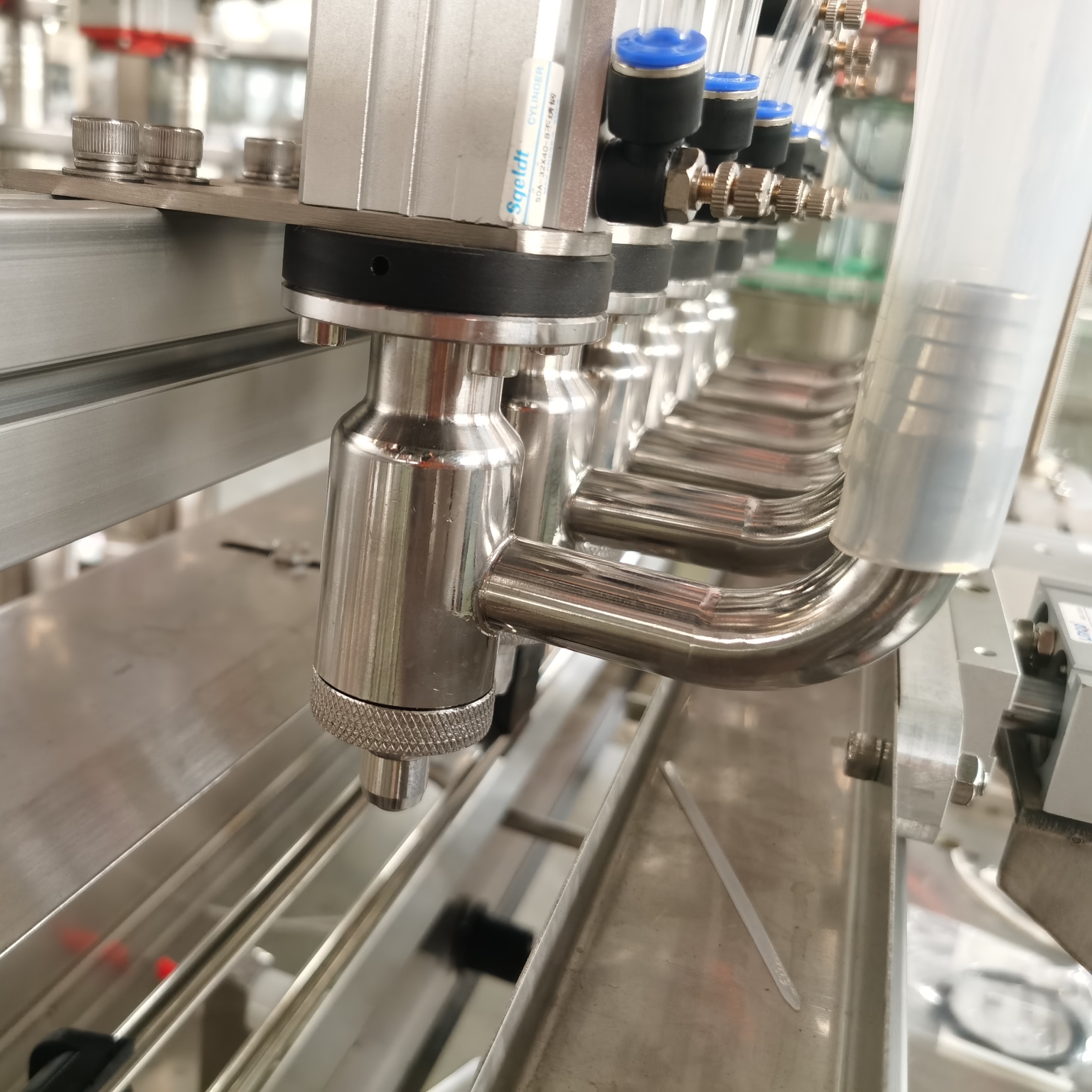

High-end pneumatic filling ball valves ensure stable, precise control during the filling process. Filling heads are customizable in 304 or 316 stainless steel, adapting to diverse material requirements (including corrosive substances for 316 option).

A specialized anti-drip design prevents liquid leakage, avoiding bottle body contamination and ensuring clean packaging.

Operation is simplified via PLC control and a touchscreen interface, enabling quick parameter adjustments for efficient, user-friendly operation.

Product Paramenters

Item	Specification
Product Model	6 heads viscous liquid filling machine
Production Capacity	600-800 bottles/hour
Applicable Filling Container Size	Φ65-Φ165mm or square bottles 65-140mm (width), 180-360mm (height)
Main Machine Power	3.01KW
Power Supply Voltage	Three-phase four-wire 380V
Air Supply	0.4-0.8MPa, 0.1m³/min
Main Machine Overall Dimensions	1500mm×1000mm×2200mm
Ready-to-use Weight	500KG

Company Profile

Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.

Why Choose Us

Product packaging

FAQ

1. What main products does Qingzhou Jiutai specialize in?

We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?

Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?

Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?

Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?

Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
