High Speed Servo Capping Machine Plastic Glass Bottle Screwing Automatic Drink Juice Aluminium Cap Locking for Jar

machinery test report : Provided

Capping speed : 2000-6000BPH

Control : PLC + button or touch screen

driven type : Electric

packaging material : Metal, Plastic, Glass

Capping type : Screw Capping Locking

voltage : 380 V, 220 V

warranty : 1 Year

Application : plastic bottle Cap

Brand Name : JIUTAI

MOQ : 1 set

video outgoing-inspection : Provided

Bottle type : Plastic Bottle

Max.Bottle Diameter(mm) : 150

Weight (kg) : 200

application : Beverage, Chemical, Food

Power : 370W or biger

Place of Origin : Shandong, China

Price : $4,800-5,000 / set

automatic grade : Automatic

key selling points : Easy To Operate

packaging type : Bottles

dimension(l*w*h) : 1200*1200*2200

After-sales Service Provided : Online Support

core components : Motor

Used for : Drink Bottle Perfume Bottle

Keywords : Wine Bottle Sealing Machine

Name : plastic Cap Crimping Capping Machine

Contact Now

High Speed Servo Capping Machine Plastic Glass Bottle Screwing Automatic Drink Juice Aluminium Cap Locking for Jar

Products Description

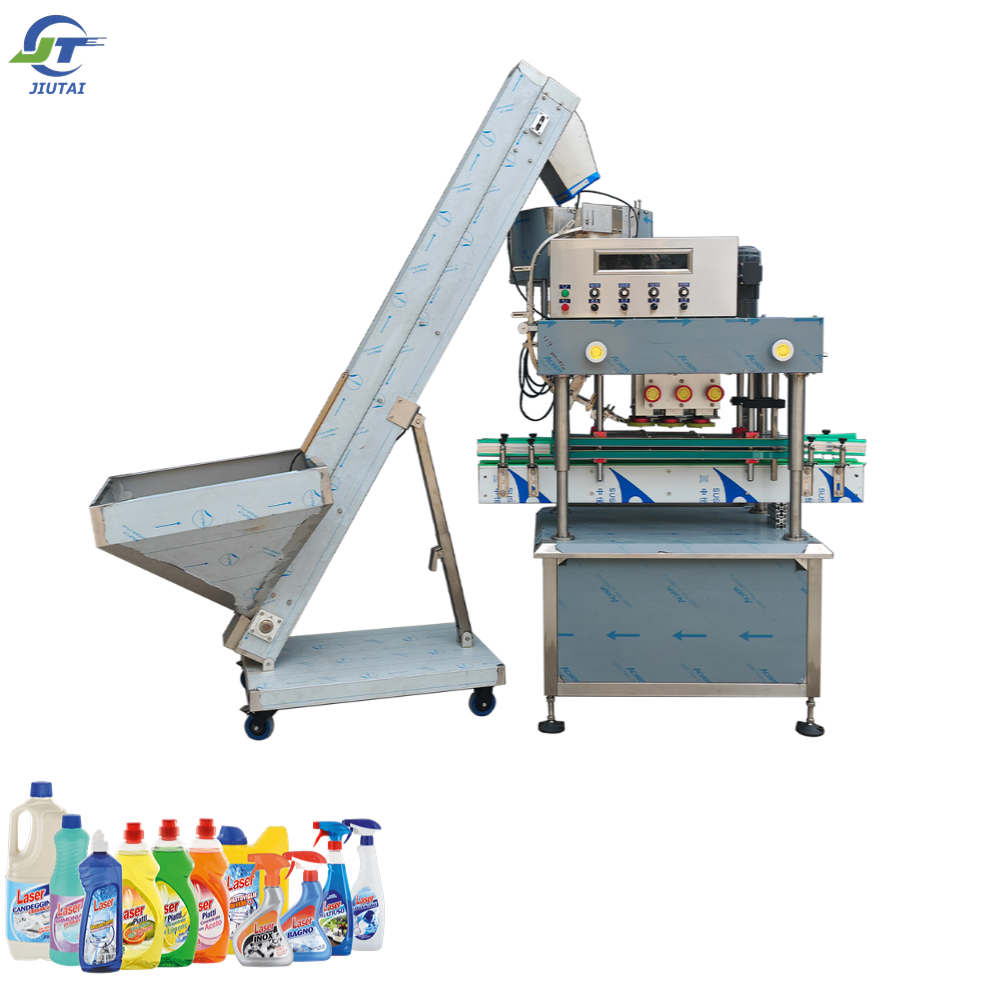

Automatic High Speed Plastic Cap Sealing Machine

This bottle screw capping machine is mainly used for the plastic cap sealing of plastic bottles,PET bottles. The whole machine is mainly made of stainless steel and pig iron. All the direct contact with the bottle cover is made of stainless steel SUS304. The top of the machine contains the sorting caps hopper, saving manpower and material resources. The machine's output from 2000-8000 bottles / hour.It is commonly used in industries such as food and beverage, cosmetics, and household products.

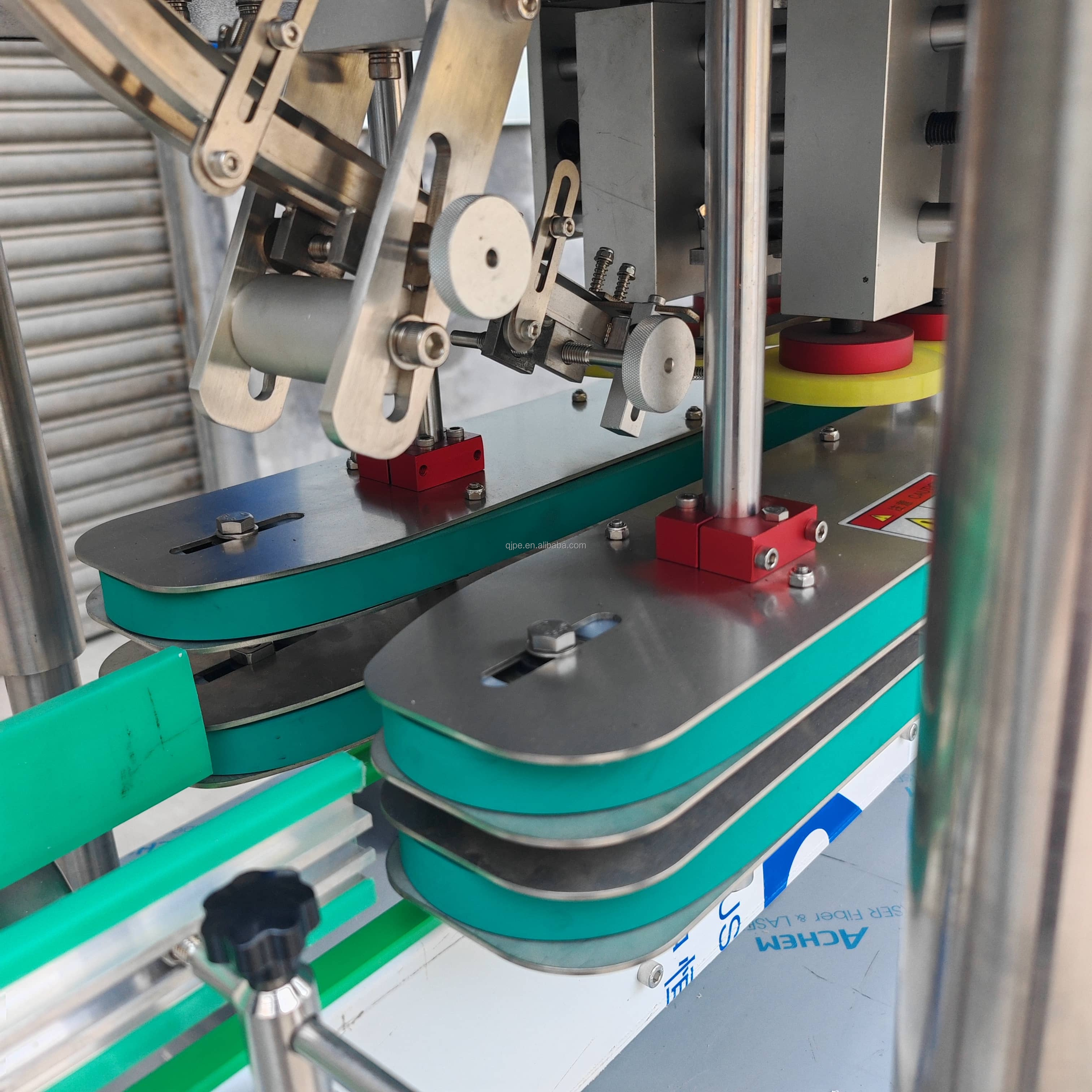

Details Images

1. Adopt agile module combination, new ideal design, suit to various bottle and cap-rotating.

2. No need to change parts, easily adjust.

3. Easy operation and convenient for maintenance.

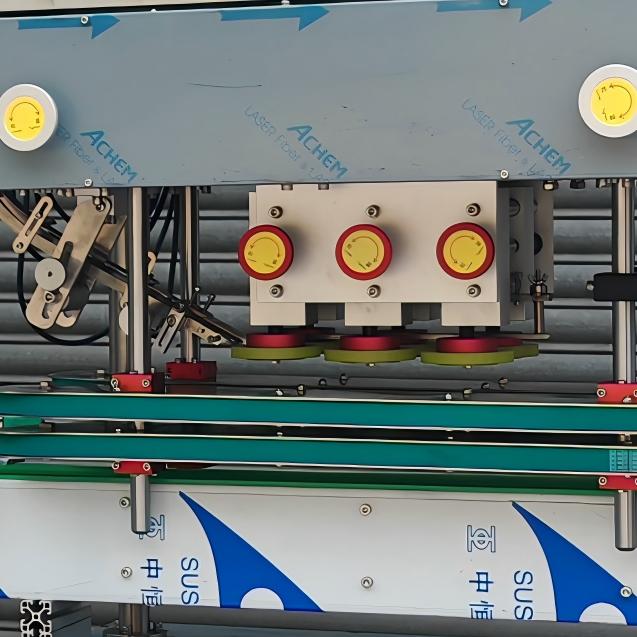

4. Three group capping consist of first rotating and re-rotating the degree of momentmay be adjusted singly. Ensure that will be tight. The machine has clutch to avoidthe cap over- rotating. 5. Two sets of bottle nipping and annular belt structure, Good effect for some bottleserecting unsteadily. 6. Cap arranging part, conveying part, cap-rotating, belt for bottle, nipping, all ofspeed can be governing separately, which is more utility.

7. Choosing automatic cap-sender and cap hopper.

Product Paramenters

Applied bottle height	50-300mm
Applied bottle width(diameter)	30-300mm
Applied cap diameter	20-150mm
Success rate of capping	>99.99%
Power supply	1500W,110V/220V,50/60Hz,1 phase (customized)
Speed control	Frequency conversion adjusting speed
Machine size	L2500W1000H2000 mm
Machine net weight	300KG
Cap feeding device	Optional (cap elevator or vibrating disk)
Machine capacity	1000-5000 bottles/hour

Recommend Products

Company Profile

Why Choose Us

Product packaging

FAQ

1. What main products does Qingzhou Jiutai specialize in?

We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?

Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?

Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?

Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?

Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
