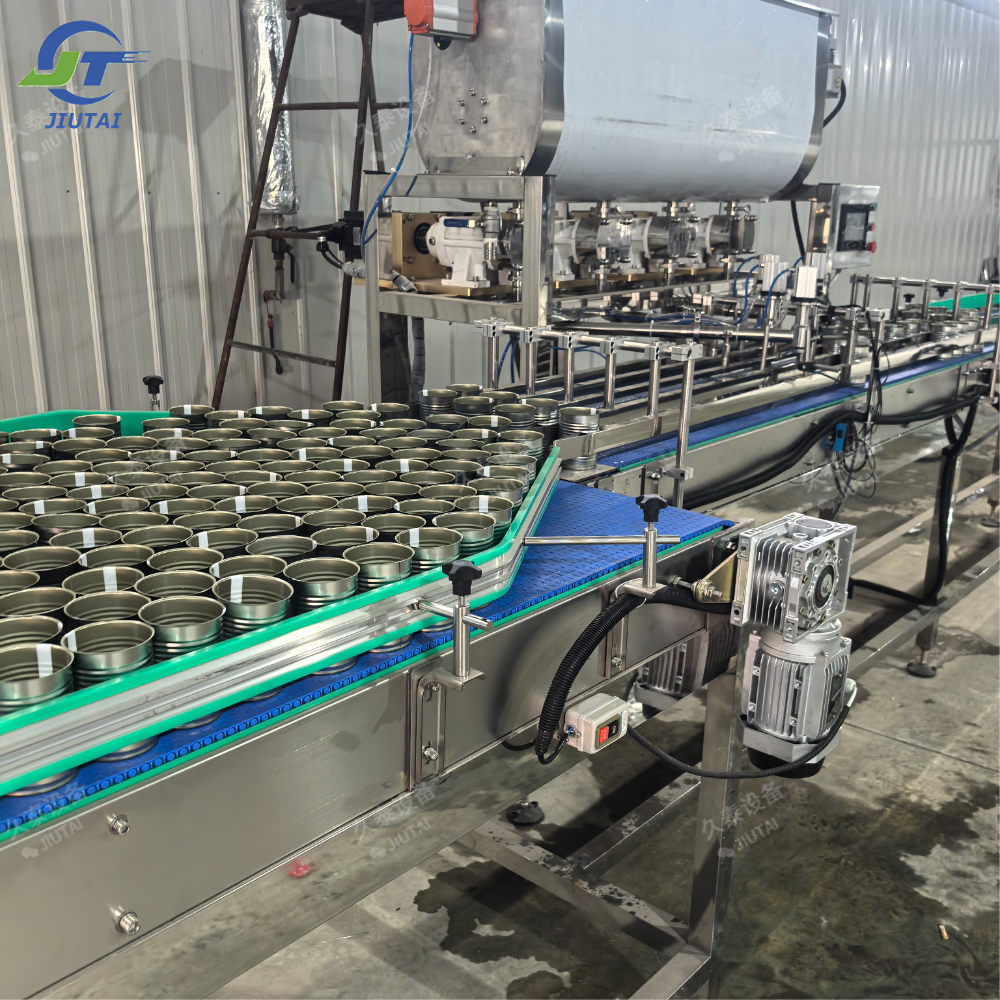

Automatic Quantitative Tomato Paste Tin Can Filling Sealing and Seaming Machine

Voltage : 220 V, 110 V, 415V, 380 V

Keywords : Fillng Machine

warranty : 1 Year

Control : PLC+ Touch Screen

Suitable for : canned food

Material : SUS304 / 316

packaging material : Plastic, Metal, Wood

dimension(l*w*h) : 2200*1200*2400

machinery test report : Provided

Bottle type : metal can

packaging type : Bottles, Cans, Barrel, Pouch

automatic grade : Automatic

Weight (kg) : 1100

Price : $14,000-15,000 / set

filling nozzle : 4, 6, 10, 8

application : Food, Other

video outgoing-inspection : Provided

core components : Motor, PLC, Pump

Filling speed : 1000-2000BPM

Product name : Automatic canned food Filling Machine

Filling Volume : 50ml-20L, 50ml-1000ml

driven type : Electric

key selling points : Easy To Operate, Competitive Price, Digital

Place of Origin : Shandong, China

After Warranty Service : Online Suppot

Filling head : 12-36Heads(Customizable)

MOQ : 1 set

filling accuracy : ±3%

After-sales Service Provided : Video Technical Support

filling material : Liquid Soap, meat

Contact Now

Automatic Quantitative Tomato Paste Tin Can Filling Sealing and Seaming Machine

Products Description

Canning and Packaging Process Flow:

1.Can Rinsing (via Can Washer)

2.Quantitative Fish Filling using Combination Weigher (Filling Machine)

3.Broth Addition (by Liquid Filling Machine)

4.Pre-sealing & Vacuum Sealing (with Sealing Machine)

5.Cage Loading

6.Sterilization in Retort (Steam/Water Bath Sterilization)

7.Cage Unloading

8.Stage-wise Cooling (via Cooling System)

9.Appearance Inspection & Vacuum Leak Detection (using Testing Equipment)

10.Weight Check (by Weighing Machine)

11.Surface Water Removal (with Air Knife Dryer)

12.Labeling (via Labeling Machine)

13.Production Date Marking (by Code Printer)

14.Cartoning & Palletizing (using Cartoning Machine + Palletizer)
15.Finished Product Warehousing

Details Images

}Full-automatic Combination Weighing Canning
Machine

Targeted Problem-solving: Material Characteristics: Irregular particle size and shape, potentially uneven density, oily and moist surface, prone to adhesion, caking, and material jamming. Hygiene Requirements: Direct contact with raw meat requires the equipment to meet food-grade hygiene standards, be easy to thoroughly clean and disinfect (CIP/SIP), and have corrosion-resistant materials.

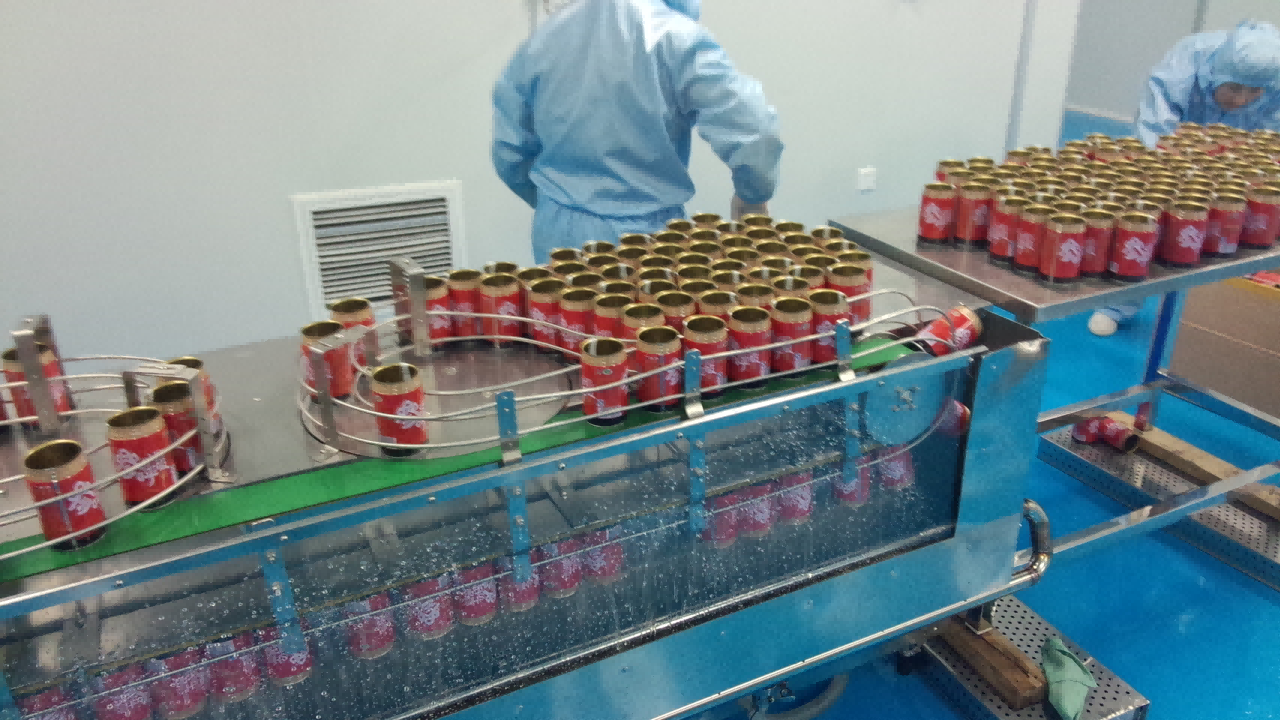

Tinplate Easy-Open Can Rinsing Machine

This machine is mainly used for continuous cleaning of tinplate three-piece can easy-open cans, and is also suitable for other
models of tinplate cans with similar size and shape. It has the characteristics of good cleaning effect, reasonable structure,
stable operation, high production efficiency, etc., and is an ideal supporting cleaning equipment for canned food productionlines.

Rotor Pump & Servo control

Accurate filling and easy to adjust filling volume

SUS304/SUS316 hopper

The hopper inside has liquid floating ball,it could sensing liquid level.When liquid is less,it could feeding automatically, whenarrived certain level,it will stop feeding automatically.The action is automatic control.

Filling Accuracy: Strict net content requirements for canned products necessitate high-precision weighing. Automation and Efficiency: Seamless integration with upstream (feeding) and downstream (canning, sterilization) production lines to achieve continuous high-speed production. Solution: Dedicated Combination Weighing and Filling Machine System This solution uses an advanced multi-head computer combination scale as the core, paired with a specialized feeding system, optimized filling head, and integrated control system, specifically designed for the characteristics of tuna. System Composition and Function Description 1. Feeding System - Critical Preprocessing Link Function: Uniformly, stably, and non-destructively convey tuna from the upstream to each feeding hopper of the combination scale, while resolving adhesion and caking issues. Core Components: Buffer Hopper/Lifter: Receives upstream materials, maintains a certain buffer volume, and stabilizes feeding. Specialized Vibratory Feeder/Belt Conveyor: Special Design: Tailored for tuna characteristics. The chute/belt surface uses food-grade non-stick coatings (e.g., Teflon) to reduce adhesion. Separation Device: May be equipped with gentle mechanical levers, brushes, or low-pressure air blowing devices to softly break up slightly caked tuna during transportation, ensuring single-particle flow. (Note: Avoid damaging meat particles.) Speed Control: Adjustable to match the combination scale requirements. Distributor: Evenly distributes materials to multiple linear vibratory feeders above the combination scale. 2. Multi-head Computer Combination Scale - Core Weighing Unit Function: Achieves high-speed, high-precision weighing of tuna. Through combined calculations of multiple weighing hoppers (e.g., 10-head, 12-head, 14-head, 16-head, or more), it quickly selects the combination closest to the target weight for discharge. Key Designs for Tuna: Large-capacity Anti-stick Weighing Hoppers: Hopper capacity is designed to

Note: We can customize the machine according to your actual output requirements and plan the layout of the production line based on your site, so that you can achieve the most efficient use of the site.

Product Paramenters

Model	JTCFL-12
Filling nozzles	12
Production capacity per minute	1000~2500BPH
Filling volume range	Min.5ml,max:no limited
Filling way	Rotor pump
Filling Control	servo motor
Filling accuracy	±0.5%
Working pressure	0.3~0.6Mpa
Overall dimension	10008001880mm
Weight	250Kg
