2000 BPH Automatic Digital Rotary Vacuum Liquid Filling Machine PLC-controlled Glass Bottle Juice Fruit Vinegar Filling Line

application : Chemical, Water, Other

Voltage : 220 V, 110 V, 415V, 380 V

Material : SUS304 / 316

MOQ : 1 set

key selling points : Easy To Operate, Competitive Price, Digital

Filling Volume : 50ml-20L, 50ml-2500ml

Place of Origin : Shandong, China

Suitable for : Fluid Material (alll Liquid Products)

Weight (kg) : 500

dimension(l*w*h) : 1500*1200*2200

filling nozzle : 4

automatic grade : Automatic

warranty : 1 Year

Filling head : 12-36 Heads(Customizable)

filling material : Water, Alcohol, Juice, Spirit, Liquor

core components : Motor, PLC, Pump

driven type : Electric

After Warranty Service : Online Suppot

Filling speed : 1800-8000BPH

packaging material : Plastic, Metal, Wood

Price : $7,400-7,500 / set

packaging type : Bottles, Cans, Barrel, Pouch

machinery test report : Provided

Control : PLC+ Touch Screen

Keywords : Fillng Machine

video outgoing-inspection : Provided

Product name : Automatic rotary vacuum Liquid Filling Machine

filling accuracy : ±3%

After-sales Service Provided : Video Technical Support

Bottle type : PET Plastic Bottle Glass Bottle

Contact Now

2000 BPH Rotary Vacuum Liquid Filling Machine Glassbottle Juice Fruit Vinegar Bottle Filling Line

2000 BPH Automatic Digital Rotary Vacuum Liquid Filling Machine PLC-controlled Glass Bottle Juice Fruit Vinegar Filling Line

Products Description

The automatic rotary negative pressure filling machine is specially designed for efficient liquid filling. It adopts a rotary structure and the negative pressure principle to ensure precise filling of various liquids such as fruit juice, wine, beverages and spirits. Suitable for glass bottles and rigid plastic bottles, it operates stably with an output of 2000-8000 BPH. Integrating filling functions, the machine features reliable performance and simple operation, complies with food-grade standards, and is an ideal choice for filling non-viscous liquids like beverages and spirits.

Details Images

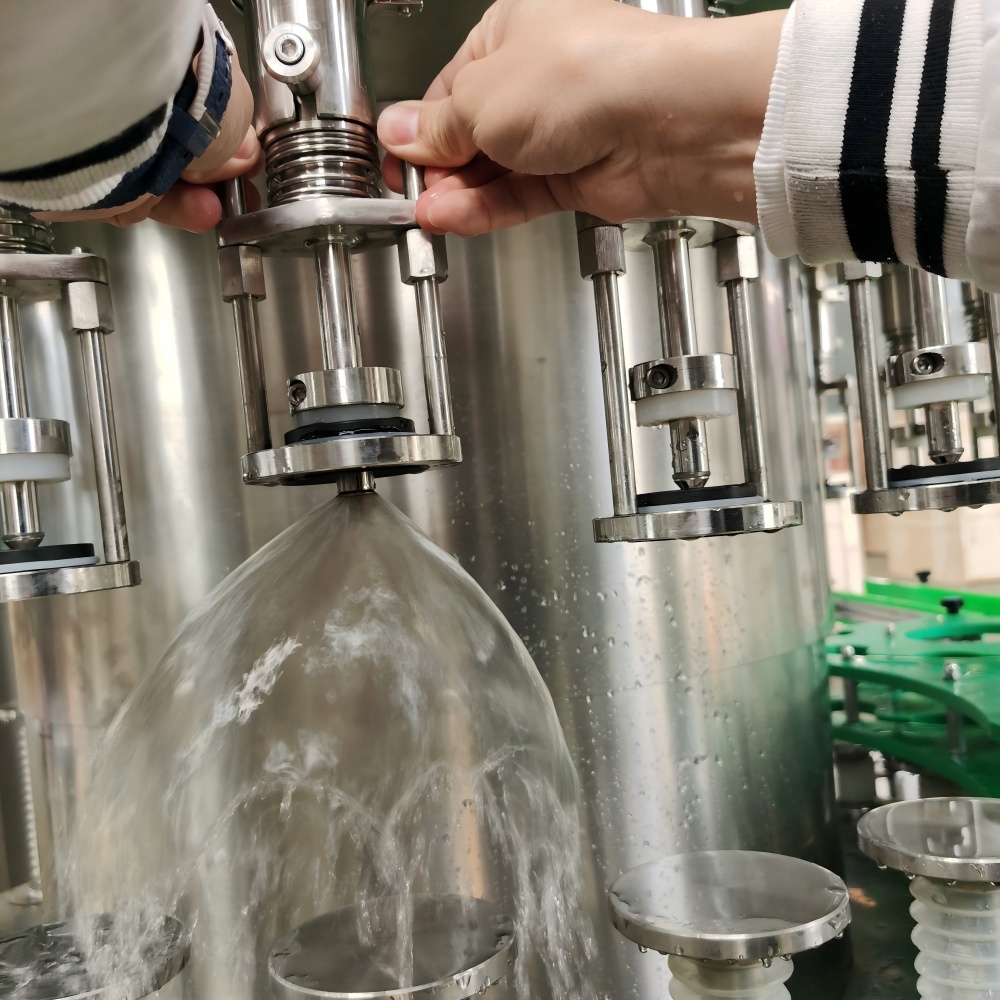

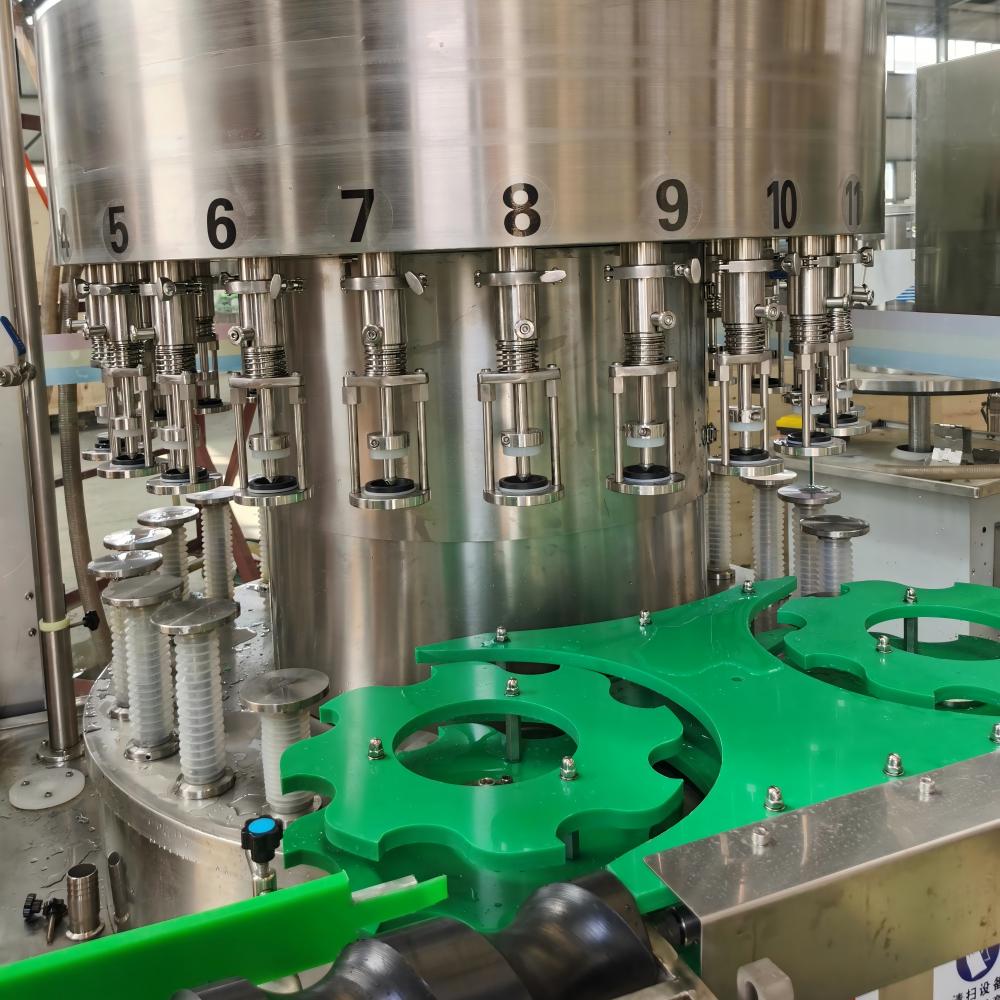

From the machine details, you can see that the entire machine is made of SUS304 stainless steel. It is equipped with customized filling valves, which are applicable to different bottles. The liquid is filled in an umbrella shape, which can effectively prevent foaming. Moreover, low-vacuum filling is adopted to ensure consistent liquid levels after filling. Regarding control and adjustment, there are two forms: PLC + buttons or touch screen. In addition, the machine can be matched with different star wheels and accessories for bottles of different shapes.

Product Paramenters

Item	Specification
Product Model	12 heads Noviscous liquid filling machine
Production Capacity	2000-8000 bottles/hour
Applicable Filling Container Size	Φ65-Φ165mm or square bottles 65-140mm (width), 180-360mm (height)
Main Machine Power	3.01KW
Power Supply Voltage	Three-phase four-wire 380V
Air Supply	0.4-0.8MPa, 0.1m³/min
Main Machine Overall Dimensions	1200mm×1200mm×2200mm（customization）
Ready-to-use Weight	500KG

Company Profile

Qingzhou Jiutai Packaging Equipment Co., Ltd. specializes in filling, packaging and water treatment equipment. Star products include full-auto liquid filling machines, intelligent production lines and flexible systems for diverse industries. Serving 30+ countries, we provide customized, energy-efficient solutions with ISO9001/CE certification. Our goal is to optimize efficiency, cut costs via advanced tech, and drive smart manufacturing upgrades under the "technology + service" philosophy, offering full-cycle support for long-term partnerships.

Why Choose Us

Product packaging

FAQ

1. What main products does Qingzhou Jiutai specialize in?

We specialize in manufacturing filling machinery, packaging equipment, and water treatment
systems, including full-auto liquid filling machines, intelligent packaging lines, and carbonated liquid mixers.

2. Do your products meet international standards?

Yes, all core products are certified under ISO 9001 and CE, ensuring compliance with global quality and safety regulations for food, beverage, and chemical industries.

3. Can you provide customized solutions for specific needs?

Absolutely. We offer tailored equipment designs and production lines to meet unique requirements, with case studies in 30+ countries demonstrating our expertise in customized, energy-efficient solutions.

4. What after-sales support do you provide?

Our "technology + service" philosophy includes comprehensive support: R&D consultation, installation guidance, maintenance training, and 24/7 technical assistance to ensure long-term operational efficiency.

5. How does your equipment enhance production efficiency?

Our automated systems (e.g., semi-auto capping machines, conveyor lines) reduce manual labor, while intelligent controls and energy-saving designs optimize output by up to 40% compared to traditional models.
